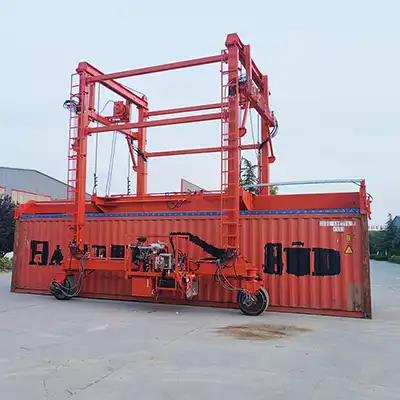

Container Handling Crane

Container Handling Crane is a core solution for container handling in ports, logistics yards, freight terminals, and intermodal transport hubs, designed to deliver flexible, efficient, and cost-effective container lifting, loading/unloading, and short-distance transfer operations for 20ft and 40ft standard containers.
  • Product details
  • Container Handling Crane

    Portable Container Crane.webp

    Container Lift (RTG)


    Product Introduction

    Container Lift(RTG) is a core solution for container handling in ports, logistics yards, freight terminals, and intermodal transport hubs, designed to deliver flexible, efficient, and cost-effective container lifting, loading/unloading, and short-distance transfer operations for 20ft and 40ft standard containers.

    Unlike fixed rail-mounted gantry cranes, our mobile RTG adopts a fully hydraulic-driven, rubber-tired structure, enabling unrestricted movement across yards without rail infrastructure. It is the ideal choice for small-to-medium-sized ports, logistics companies, and freight stations with flexible site requirements and medium throughput demands.

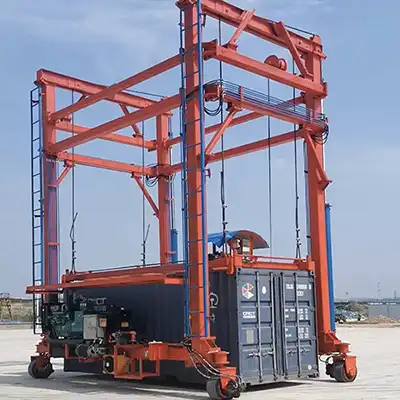

    Mobile Hydraulic Container Gantry Crane.webp

    Core Technical Parameters (Standard Model)

    ParameterSpecification
    Rated Lifting Capacity30T / 35T / 40T (customizable)
    Applicable Container Type20ft / 40ft ISO standard container
    Lifting Height6m / 9m / 12m (customizable)
    Span6m / 7.5m / 9m (customizable)
    Lifting Speed0-8m/min (stepless speed regulation)
    Travel Speed0-20m/min (stepless speed regulation)
    Power SystemDiesel engine / Electric motor (dual power optional)
    Control ModeRemote control + cab operation (dual control optional)
    Gradeability≤3%
    Working Temperature-20℃ ~ +45℃
    Wind Resistance GradeWorking: ≤6 levels; Non-working: ≤11 levels

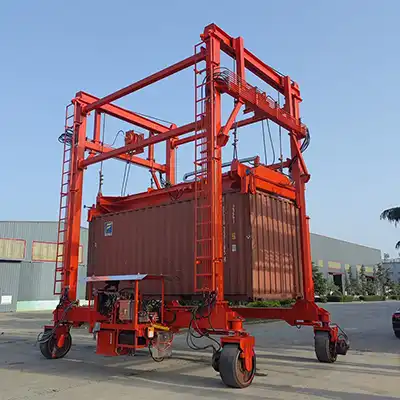

    Rubber Tyred Gantry Crane1.webp

    Key Product Advantages

    1. Flexible Mobility, No Rail Required

    Equipped with heavy-duty rubber tires and a hydraulic steering system, the crane can move freely in any direction on flat ground, eliminating the need for fixed rail installation. It significantly reduces site construction costs and adapts to dynamic yard layouts.

    2. High-Efficiency Hydraulic Drive

    Adopts a mature hydraulic lifting and driving system, featuring stable operation, low noise, and precise control. It achieves stepless speed regulation for lifting and traveling, ensuring safe and efficient container handling with a 30T load capacity.

    3. Comprehensive Safety Protection

    Equipped with multiple safety devices, including:
    • Overload protection system
    • Limit switches for lifting and traveling
    • Emergency stop function
    • Hydraulic lock for anti-falling
    • Wind-proof and anti-slip device
    • Real-time monitoring system for operating status

    4. Global Adaptability & Customization

    We provide fully customized solutions to meet diverse working conditions:
    • Multiple power options (diesel/electric/hybrid)
    • Customized lifting height, span, and load capacity
    • Cold-resistant, high-temperature, and corrosion-resistant configurations for extreme environments
    • Compatibility with special containers (refrigerated containers, bulk containers, etc.)

    5. Low Operating & Maintenance Costs

    The modular design reduces maintenance difficulty and costs. The energy-efficient hydraulic system lowers fuel/electricity consumption, delivering a lower total cost of ownership (TCO) compared to large port cranes.

    Application Scenarios

    • Port & Terminal: Container loading/unloading from trucks, short-distance transfer in yards
    • Logistics & Freight Yard: Container storage, stacking, and intermodal transfer
    • Intermodal Transport Hub: Railway/road container transshipment
    • Small & Medium-Sized Logistics Enterprises: On-site container handling for self-operated yards
    • Special Scenarios: Military logistics, mining port, temporary container handling sites

    After-Sales & Global Partner Support

    As a professional heavy equipment manufacturer with 16+ years of industry experience, ZFITA provides comprehensive support for global agents and partners:
    • Full-Lifecycle Technical Support: On-site installation, commissioning, and operator training
    • Genuine Parts Supply: Fast global delivery of spare parts
    • Customized R&D Support: Joint development of special models for regional market demands
    • Marketing & Brand Support: Product brochures, technical materials, and exhibition support
    • Warranty Service: 12-month warranty for the whole machine, lifelong maintenance support

    Partner Recruitment

    We are actively recruiting local international agent partners worldwide. If you are engaged in port logistics, heavy equipment, or freight transport industries and have local market resources, we welcome you to join ZFITA to explore the global container handling equipment market together.



Product Inquiry

Please leave your message, we will contact you quickly after receiving it, thank you for your support!

Container Handling Crane
  • What kind of product do you need?
  • What's your budget?
  • What other information do you need to know?

F.A.Q

Q

What is your delivery time ?


A

Most of our equipments like the container tilter, hydraulic truck dumper, steel deck truck scales takes around three weeks for production while the container telescopic feeder conveyor takes around four weeks.
Contact us to get more details.

Q

What payment terms can you accept?


A

Usually we do T/T 30% in advance, balance before shippment. However we can also accept L/C payment for the balance payment after the first order.
Contact us to get more details.

ZFITA is specialists in designing and supplying innovative power hydraulic/ electric power equipment, including container tilter, truck dumper, truck weighing scale and related machinery.
