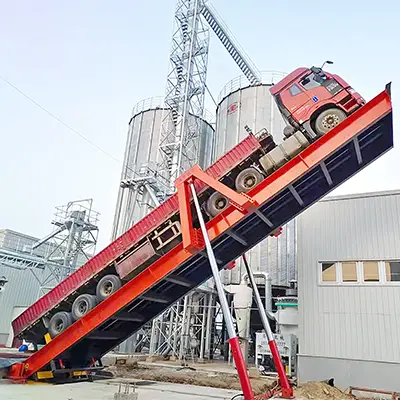

Shallow Foundation Hydraulic truck tipper
- Product details
-
Hydraulic truck tipper
Hydraulic tipper is a type of material unloading equipment. They are modern material unloading devices suitable for unloading bulk and bagged materials such as ores, clinker, grains, feed, and oils. They utilize a hydraulic system to achieve rapid unloading of goods to a designated location. Hydraulic tipper truck are widely used in ports, logistics centers, industrial and mining enterprises, and other similar locations.
Shallow Foundation Type:
The bulk material unloading device with a shallow foundation structure is mainly suitable for large-tonnage and long-platform truck unloading. Two main hydraulic cylinders are arranged on both sides of the platform, and the force is evenly distributed through the gantry frame. During operation, the system automatically detects the synchronous operation status of the dual cylinders and performs real-time synchronous deviation correction. Multiple protection measures are designed to ensure synchronous and stable operation of the dual cylinders.
Compared with deep foundation structures, it features lower civil engineering costs.
This shallow-foundation bulk material unloading device is suitable for sites with existing discharge hoppers or feeding floor drain. It is installed in front of such hoppers and floor drains, requiring only simple civil foundation construction. Upon completion, the equipment is flush with the ground, allowing vehicles to pass through either forward or in reverse.
In addition, equipped with a 1.5t mechanical balance frame manufactured using our company’s unique steel structure welding technology, the equipment remains unaffected under special conditions such as external interference. Multiple protection measures are incorporated to guarantee synchronous operation of the dual cylinders, ensuring safety, stability and reliability.
Technical specifications
Models
Table Dimensions
Lift capacity(t)
Lift angle
Support type
ZTTQJ-100
17*3
100
40/45
Dual oil cylinders
ZTTQJ-120
17*3
120
40/45
Dual oil cylinders
ZTTQJ-150
17*3
150
40/45
Dual oil cylinders
Remark: Max. Angle can be 55°for poor flow material and matching with vibrating device.
Notes:
1. Table dimensions can be customized according to the special characteristics of materials and customers’ specific requirements.
2. A through-type design can be adopted based on the material of the on-site feeding opening.
3. All standard deep foundation equipment supplied by our company adopts imported components with a content rate of 99%.
