Truck Unloading Platform
- Product details
-

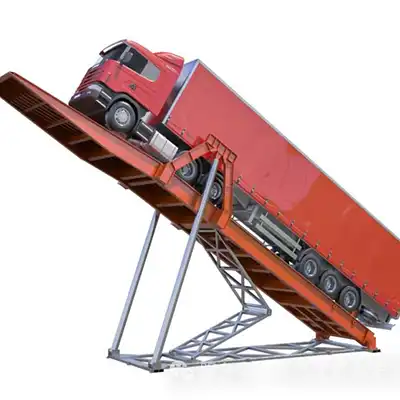

Truck Unloading Platform is a movable hydraulic tipping platform that can tilt the truck/semi-trailer up to 55° to unload bulk materials (coal, ore, grain, clinker, etc.) automatically, without manual operation or auxiliary equipment.
Product Overview
ZFITA is a professional manufacturer of bulk material handling equipment with 16+ years of industry experience.
Our Truck Unloading Platform (Mobile Truck Dumper) is a high-efficiency, flexible unloading solution designed for global mining, port, grain, logistics and cement industries.
This equipment adopts a movable hydraulic tipping platform structure, which can tilt the entire truck/semi-trailer at an angle of 45°-55° to automatically unload bulk materials (coal, ore, grain, clinker, etc.) by gravity, without manual operation or auxiliary loading equipment. It is the ideal upgrade solution for fixed truck dumpers, perfectly adapting to multi-point unloading scenarios such as open-pit mines, temporary ports, grain depots and logistics hubs.
Core Technical Parameters (Standard Model)
Parameter Specification Rated Load Capacity 60T / 80T / 100T / 120T (fully customizable) Applicable Vehicle Type 20ft/40ft semi-trailer, dump truck, heavy-duty truck (customizable for special vehicles) Tipping Angle 0°-55° (adjustable, standard 45°) Tipping Time 80-120s (adjustable, stepless speed control) Platform Size 12m×3m / 14m×3.5m / 16m×3.5m (customizable) Power System Electric motor (380V/440V/660V) / Diesel engine (dual power optional) Hydraulic System Pressure 25-31.5MPa Travel Speed 0-15m/min (stepless speed regulation) Gradeability ≤3% Control Mode Remote control + wired control + cab operation (triple control optional) Working Temperature -20℃ ~ +45℃ Wind Resistance Grade Working: ≤6 levels; Non-working: ≤11 levels
Key Product Advantages of Truck Unloading Platform
1. Flexible Mobility, No Fixed Foundation Required
Equipped with heavy-duty rubber tires and a hydraulic walking system, the dumper can move freely between multiple unloading points, eliminating the need for fixed concrete foundation construction. It greatly reduces site investment costs and adapts to temporary or dynamic unloading scenarios.2. Ultra-High Unloading Efficiency
It only takes 3-5 minutes to unload a full truck of bulk materials, which is 10+ times more efficient than manual unloading. It effectively solves the problem of low unloading efficiency in mines, ports and grain depots, and reduces labor costs.3. Comprehensive Safety Protection System
Equipped with multiple international standard safety devices to ensure zero accidents during operation:- Hydraulic lock anti-falling system (prevents platform sudden drop)
- Overload protection and pressure relief device
- Limit switch for tipping angle and travel
- Emergency stop function (manual + remote)
- Anti-tipping and anti-slip device
- Real-time monitoring system for hydraulic pressure and temperature
4. Fully Customized Solutions
We provide personalized customization to meet the special needs of different regions and working conditions:- Customized load capacity, platform size and tipping angle
- Multiple power options (electric/diesel/hybrid)
- Cold-resistant, high-temperature and corrosion-resistant configurations for extreme environments
- Side-tipping / rear-tipping structure optional
- Compatibility with special bulk materials (high-temperature clinker, corrosive chemicals, etc.)
5. Low Operating & Maintenance Costs
Modular design reduces maintenance difficulty and costs. The energy-efficient hydraulic system lowers fuel/electricity consumption, delivering a lower total cost of ownership (TCO) compared to fixed dumpers. The whole machine has a long service life and low failure rate.Application Scenarios
- Mining & Coal Industry: Unloading of raw coal, iron ore, limestone and other bulk minerals
- Port & Logistics Hub: Unloading of bulk cargo in transit
- Grain & Feed Industry: Unloading of grain, soybean, feed raw materials in grain depots
- Cement & Chemical Industry: Unloading of clinker, slag, chemical raw materials
- Power Plant: Unloading of coal for power generation
- Temporary Unloading Sites: Temporary storage yards, construction sites, emergency unloading scenarios
After-Sales & Global Agent Support
As a professional heavy equipment manufacturer with rich export experience, ZFITA Group provides comprehensive support for global agent partners:- Full-Lifecycle Technical Support: On-site installation, commissioning, and free operator training
- Genuine Parts Supply: Fast global delivery of spare parts with 7*24h technical response
- Customized R&D Support: Joint development of special models for regional market demands
- Marketing & Brand Support: Professional product brochures, technical materials, exhibition support and brand authorization
- Warranty Service: 12-month warranty for the whole machine, lifelong maintenance support
- Agent Exclusive Benefits: Favorable agent price, regional market protection, and joint market development support
Partner Recruitment
We are actively recruiting local international agent partners worldwide. If you are engaged in mining, port logistics, heavy equipment or bulk material handling industries and have local market resources, we welcome you to join ZFITA to explore the global bulk unloading equipment market together.
