Container Straddle Carrier Manufacturer in China

ZFITA manufactures mobile container straddle carriers for lifting and moving 20ft and 40ft shipping containers within industrial yards, logistics facilities and container handling sites. Explore our 35-ton ZCSC configurations and request a project-specific quotation for your required lifting capacity.

35T Published Models20ft / 40ft ContainersDiesel / Electric Options to ConfirmFactory Quotation
CONTACT USView Specifications
Equipment principle illustration. Replace with a verified ZFITA product photo when available.
Product Overview

Shipping Container Straddle Carriers for Yard Handling

A container straddle carrier travels over a suitable container, lifts it using a compatible lifting attachment and transfers it across the yard. Unlike stationary container lifting jacks, a straddle carrier combines lifting and mobile transport in one machine.

35T

Published Standard Class

ZFITA lists multiple ZCSC 35-ton configurations. Other requested capacities require a confirmed model and technical proposal.

20/40ft

Container Handling

Designed for suitable ISO container applications; verify spreader, corner fittings and container gross weight.

2

35T Lifting Arrangements

Published variants include chain and lifting-lug arrangements and an automatic container spreader.

Capacity clarification: The target keyword “20–40T container straddle carrier wholesale” refers to the buyer's intended range. ZFITA's source page confirms 35T configurations; it does not substantiate separate standard 20T or 40T models. Request engineering confirmation before publishing a wider rated range.
Technical Specifications

ZFITA ZCSC Straddle Carrier Models

The following values are drawn from the existing ZFITA product page. The focus is on the two documented 35-ton variants; figures should be confirmed against final factory drawings before quotation.

SpecificationZCSC-3532B5ZCSC-3532A
Rated Lifting Capacity35 tonnes35 tonnes
Overall Dimensions (L × W × H)9,100 × 5,100 × 6,050 mm7,100 × 5,100 × 6,050 mm
Effective Inner Width3,200 mm3,200 mm
Wheel Track (published)6,000 mm6,000 mm
Minimum Ground Clearance240 mm240 mm
Machine WeightApprox. 18T, excluding spreaderApprox. 18T, excluding spreader
Published EngineYuchai / Weichai, 80 kWYuchai / Weichai, 80 kW
Travel Speed, No Load4.5 km/h4.5 km/h
Travel Speed, Full Load2 km/h2 km/h
Turning Radius7,000 mm7,000 mm
Rated Gradeability (Empty / Loaded)5% / 3%5% / 3%
OperationCabin / Remote ControlCabin / Remote Control
Lifting AttachmentChain + Lifting LugsAutomatic Container Spreader

Source values may contain geometry inconsistencies (for example, wheel track versus overall width). Confirm dimensioned drawings, wheel configuration, lifting attachment ratings and gross loads before use in contracts.

Request Model Datasheet

Configuration

Choose the Right Container Straddle Carrier

35T — Chain & Lifting Lug Configuration

Published as model ZCSC-3532B5. An option for projects where the specified container lifting arrangement uses suitable chain and lifting-lug connections.

Attachment suitability, operating procedure and container compatibility must be engineered and confirmed.

35T — Automatic Container Spreader

Published as model ZCSC-3532A. Intended for container handling operations where an appropriately matched spreader is preferable.

Confirm 20ft/40ft spreader capabilities, lifting height, duty cycle and twistlock interface.

ZFITA also lists higher-capacity ZCSC variants in its existing product material. They should not be presented as part of the 20–40T standard offering without a revised model selection sheet.

Product Photos

Equipment Details & Manufacturing

Explore ZFITA container straddle carrier equipment, lifting configurations and container handling applications.

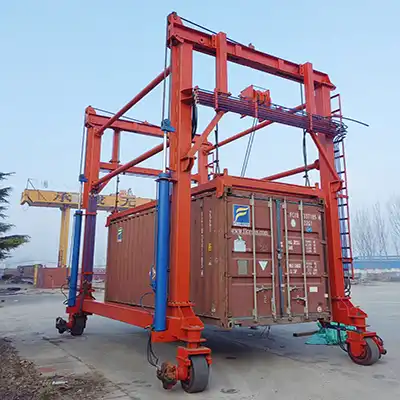

ZFITA 35 Ton Container Straddle Carrier Complete Straddle Carrier
Container Straddle Carrier Lifting Structure Spreader & Lifting Structure

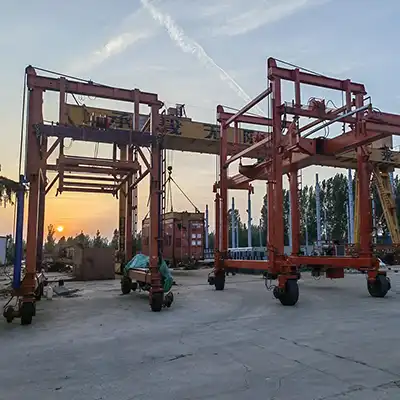

Container Straddle Carrier Yard Operation Container Yard Operation
How It Works

Container Lifting & Short-Distance Transfer

Approach

Position the carrier relative to the container on a suitable, load-bearing surface.

Connect

Engage the approved lifting attachment and check the container weight and connection points.

Lift

Raise the container within the machine's rated capacity and permitted operating conditions.

Transfer

Travel to the assigned yard position and lower the container safely.

Applications

Container Handling for Industrial & Logistics Sites

Container Storage Yards

Move suitable containers between storage positions without fixed rail systems.

Factory & Warehouse Sites

Handle incoming and outgoing containers within a defined industrial yard.

Logistics & Freight Terminals

Support on-site positioning and limited-distance container movements based on yard throughput.

Planning the full operating workflow? See On-Site Container Transfer Solution.

China Factory & OEM Supply

Why Source Container Straddle Carriers from ZFITA?

ZFITA supplies equipment and engineering support for heavy-duty container handling projects. Buyers can discuss lifting configuration, hydraulic drive, controls, yard geometry and machine adaptations with the manufacturer's technical team.

Project-Based Configuration

Discuss lifting loads, spreader type, site turning radius, surface conditions, travel distance and handling frequency before selecting a model.

Factory-Oriented Procurement

Request manufacturer quotations, technical drawings, power-system information, shipping dimensions and service arrangements for export projects.

Any factory certificates, warranty duration, electric drive options and performance guarantees should be supported by project-specific documents before publication.

Buying Guide

What Determines Container Straddle Carrier Price?

Container straddle carrier pricing depends on technical configuration rather than a single fixed price. To prepare a reliable quotation, buyers should confirm:

Load & Container

20ft / 40ft container type, maximum gross weight, center of gravity, lifting attachment and required lifting height.

Yard & Operation

Travel distance, turning space, pavement bearing capacity, duty cycle, power preference, destination and shipping requirements.

FAQ

Container Straddle Carrier FAQs

Is ZFITA a container straddle carrier manufacturer in China?

ZFITA presents its ZCSC container straddle carrier range as part of its heavy-equipment manufacturing and supply offering. Buyers can request model-specific drawings and factory documentation for verification.

Do you offer 20–40 ton container straddle carriers?

The currently published ZCSC range includes verified-on-page 35-ton configurations. Separate standard 20-ton and 40-ton configurations require factory confirmation. Please provide your required gross lifting load for selection.

Can a straddle carrier handle both 20ft and 40ft shipping containers?

Container size compatibility depends on the selected lifting attachment, carrier geometry and permitted lifting weight. Ask for the technical drawing and spreader specification for your required box sizes.

What is the difference between container straddle carriers and container lifting jacks?

A straddle carrier lifts and transports a container within a yard. Container lifting jacks lift and lower a container vertically, but do not independently transport it around the site.

Can I request a wholesale or factory-direct quotation?

Yes. Supply your required rated capacity, container sizes, quantities, site conditions, destination and preferred configurations to request a project-specific quotation.

Factory Quotation

Request a Container Straddle Carrier Quote

Need a 20–40T class shipping container straddle carrier? Tell ZFITA your required lifting load, container size, yard conditions and purchase quantity. We can review the documented 35T range and discuss suitable custom configurations.
