A container tilter rotates ISO containers by 90 degrees to enable full bulk material loading. This equipment unlocks 100% utilization of container internal volume, eliminates wasted space, boosts logistics efficiency and reduces unit freight cost for bulk cargo exporters. Scrap steel recycling and ferrous metal trading businesses are among the primary target buyers for container tilters.
However, scrap steel loading brings a well-known operational pain point. Most yards use excavators fitted with electromagnetic lifting magnets to feed scrap into upright containers. To achieve maximum fill density, operators routinely push and compact scrap inside the container with the excavator boom. The concentrated internal pressure easily pushes out thin container side panels, causing container bulging, permanent deformation or even wall rupture. Damaged boxes trigger expensive repair bills, detention charges, liner rejection and penalty fees from shipping lines.

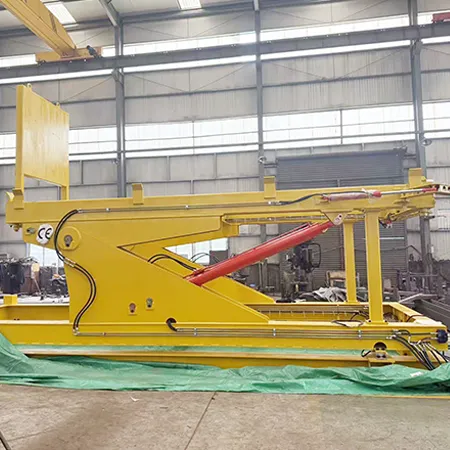

To solve this industry headache, our container tilter design integrates an optional container protection frame (anti-bulge support system). Heavy steel plates and support arms are installed on the outer side of the container. The external rigid support counteracts inward compaction force from scrap steel, restricts outward panel deflection and protects the container structure from bursting during compaction.
The protection frame is a modular optional attachment, not a fixed standard feature. Customers can select different protection configurations according to working conditions. Four common versions are available: tail protection, side protection, top protection and bottom protection. The tail protection frame is the basic and most widely adopted option.
Why Scrap Steel Loading Has a High Risk of Container Bulging
Scrap steel is dense, heavy and irregular bulk material, and it is the leading application for container tilters. When a container is locked vertically at 90° inside the tilter frame, the magnet-equipped excavator continuously feeds scrap into the box. Without external support, the thin container corrugated panels bear all compaction loads. Sharp scrap edges create local stress concentrations. Repeated boom pressing gradually bulges side walls.
Many yards face an awkward trade-off: compact fully and damage containers, or load less cargo to keep boxes intact. Underloading leaves unused container capacity and raises freight cost per ton. The anti-bulge protection frame removes this compromise. Operators can compact scrap aggressively to fill the container completely while keeping the container within allowable deformation limits.
Container Protection Frame Types & Application Scenarios
All protection modules mount onto the tilter main frame and move synchronously during rotation, locking and unloading without interfering with the 90° tilting workflow.
- Tail Protection Frame (Basic Standard Option) Tail protection is the entry-level and cost-effective configuration. It reinforces the door end of the container, the area most prone to bulging during scrap feeding. It suits general scrap steel bulk loading projects and is the first choice for customers with moderate compaction requirements.
- Side Protection Frame (Primary Anti-Bulge Solution) Dual side support arms cover left and right container side walls. Side panels receive the largest lateral pressure when excavators compact scrap. Side protection is strongly recommended for high-frequency, heavy-duty scrap steel, steel slag and mineral bulk loading. It delivers the best protection against side wall cracking.
- Top Protection Frame Top support restrains upward arching deformation of the container roof when material impacts or pushes against the top panel. It is usually combined with side protection for harsh loading conditions.
- Bottom Protection Frame Bottom support reinforces container bottom rails and floor panels. It limits outward spreading of the base structure when heavy, large scrap pieces drop and concentrate load on the container bottom.
Combined configurations are popular. Tail + side protection is the mainstream package for scrap steel yards, balancing protection performance and capital investment. Support arms and guard plates are fabricated from high-strength structural steel with optimized stress design for long service life matching the container tilter.
Core Benefits of Fitting a Container Anti-Bulge Protection Frame
✅ Prevent container bulging and wall rupture, slash repair and box damage claims External rigid support absorbs compaction pressure, eliminates bulging and tearing risks, reduces disputes and penalty charges from shipping carriers.
✅ Achieve true full-volume loading to lower freight cost Operators no longer need to reduce payload to protect containers. Full container capacity is utilized to minimize freight per ton of scrap steel.
✅ Compatible with existing magnet excavator compaction workflow The protection frame moves together with the tilter. Excavator operators can follow their normal compaction routine without slowing down loading cycles.
✅ Modular design, flexible investment Buy only the protection modules you need. Start with basic tail protection and add side, top or bottom protection later as operation scales up.
✅ Fits standard 20ft & 40ft container tilters All protection frames are built to ISO container dimensions. They work with new tilter orders and can be retrofitted onto most existing container tilters.
Ideal Buyers for Container Protection Frame
- Scrap steel recycling plants and ferrous scrap export companies (core target market)
- Bulk mineral, steel slag and high-density hard bulk material loading facilities
- High-turnover yards running multi-shift daily container loading
- Exporters frequently facing shipping line fines for deformed or bulged containers
Closing Summary
The core value of a container tilter is maximizing payload and cutting freight expense. The anti-bulge container protection frame is the critical add-on that makes this value reliable for scrap steel and heavy bulk cargo. Without external support, full compaction and container integrity conflict with each other. With properly selected protection supports, you can safely fill containers to full capacity, protect container assets and stabilize your bulk export logistics cost.
If you are sourcing a container tilter for scrap steel export, we can recommend a matched protection combination based on your material characteristics, excavator compaction practice and site budget.
F.A.Q
Q: What is a container tilter protection frame?
A: It is a steel support structure fitted outside the container on a container tilter. It stops container side wall bulging and rupture during scrap steel compaction by magnet excavators.
Q: Do I need all four protection sections?
A: No, modular selection is supported. Tail protection is the base option. Tail plus side protection is preferred for scrap steel compaction.
Q: Can I retrofit protection frames to my old container tilter?
A: Most standard tilter models support retrofitting anti-bulge protection frames customized to your container size and main frame structure.
Q: Does the protection frame interfere with tilting and unloading?
A: The protection frame moves synchronously with the tilter frame and will not block container rotation, locking or discharging.
