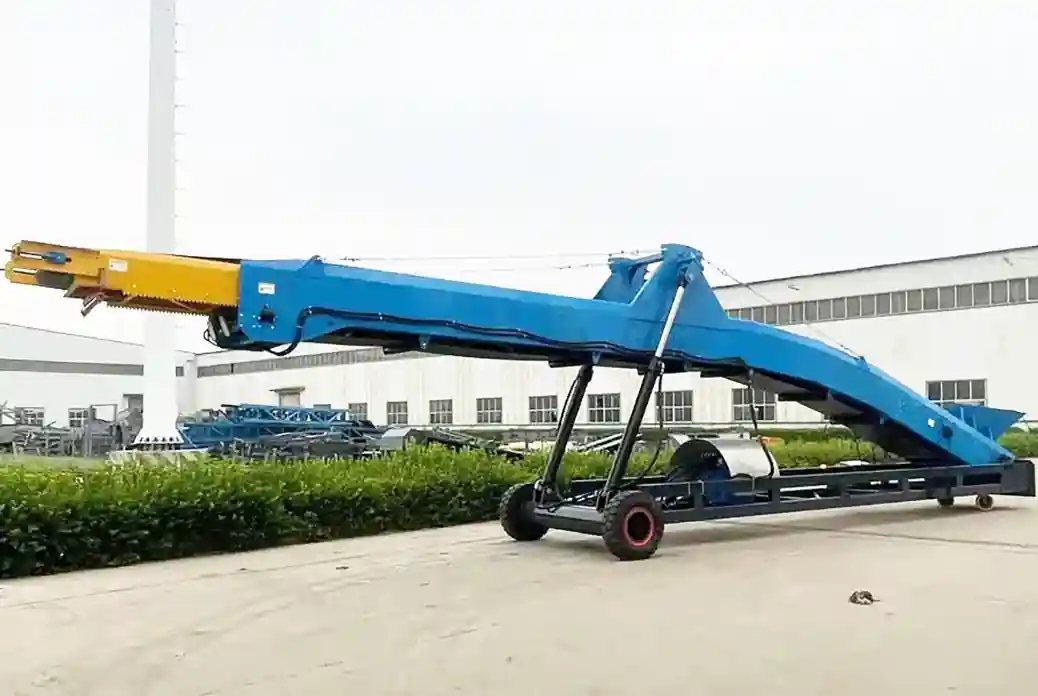

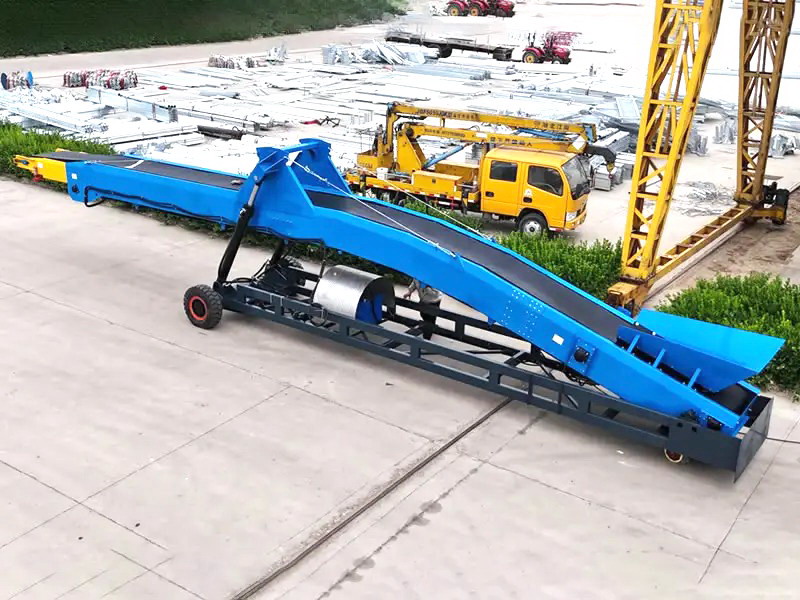

Container Loading Telescopic Conveyor

Telescopic Belt Conveyor for Container also named as Mobile Telescopic Belt Conveyor, Container Loading Telescopic Conveyor, Extendable Container Loader,

The telescopic belt conveyor for container loading works as follows:

1)The motor-driven belt continuously conveys bulk materials forward.

2)The multi-section telescopic boom extends hydraulically or electrically into the container.

3)The hydraulic lifting system adjusts the height to reach different positions inside the container.

4)The mobile frame allows flexible movement between trucks and containers.

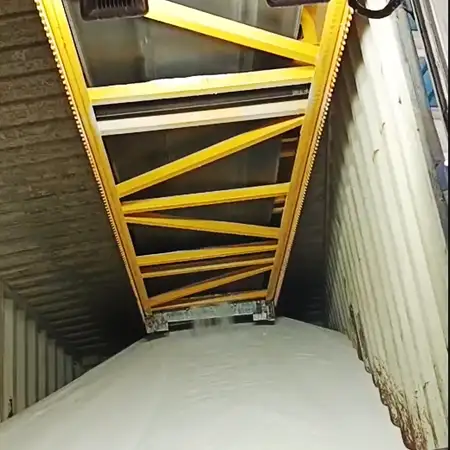

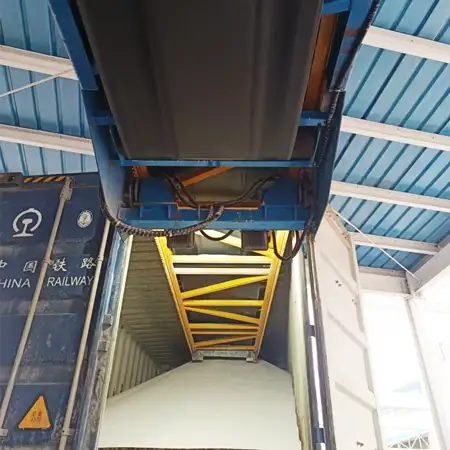

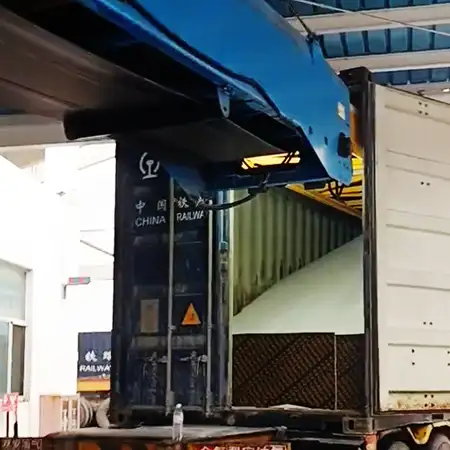

5)By extending and retracting the boom, materials are distributed evenly to fully load the container with high space utilization.

Technical Specifications

High Conveying Capacity

Capable of transporting large and heavy containers, including 20-foot, 40-foot, and other standard or custom-sized containers,

with a maximum load of several tons.
Large container conveyors can handle dozens to hundreds of containers per hour, meeting the demands of busy ports and logistics hubs.

Excellent Stability

Constructed with high-strength steel structures and components, offering excellent rigidity and long-term stability during operation.
Equipped with advanced drive and braking systems to ensure smooth startup, operation, and stopping—reducing impact and potential

damage to containers and equipment.

High Automation

Integrated with automated control systems for container identification, positioning, conveying, and loading/unloading.

Sensors, controllers, and computer systems monitor the conveyor in real time, automatically adjusting speed, direction, and routing based

on operational needs.
Seamlessly integrates with other automation equipment such as cranes, stackers, and AGVs to form a highly efficient, intelligent logistics

system—reducing manual intervention.

Strong Adaptability

Customizable designs to suit different environments and layout requirements, including straight, curved, inclined, or declined configurations.
Compatible with various container types (dry containers, reefer containers, tank containers) through specialized conveying components

and fixtures.

Low Maintenance Costs

Simple structure with high interchangeability and standardization of components, making maintenance and replacement easy.
Built with high-quality materials and advanced manufacturing processes to reduce failure rates and extend service life.
Equipped with fault diagnostics and early-warning systems to detect and resolve potential issues before they escalate—minimizingdowntime and maintenance costs.

F.A.Q

Q1: What is a container telescopic horizontal feeding conveyor?
A1: It is a multi‑section telescopic belt conveyor for direct feeding inside shipping containers. It extends deep into containers for horizontal continuous loading and retracts to compact size, cutting manual work and boosting container‑loading efficiency for warehouses and terminals.

Q2: What cargo can this conveyor handle?
A2: Suitable for all kinds of bulk materials. Not recommended for sharp, heavy or liquid bulk materials which may damage the belt.

Q3: What container sizes does it fit?
A3: Matches 20GP, 40GP, 40HQ standard containers. Retracted length: 3-8 m; max extended length: 12‑28 m. Available belt widths: 600mm / 800mm / 36ft(914mm) /1200 mm.

Q4: Can the conveyor speed be adjusted?
A4: Yes, frequency‑conversion stepless speed adjustment from 0.5‑2.2 m/s, adaptable to different loading throughput.

Q5: Mobile or fixed installation available?
A5: Both versions are available. Fixed type for loading dock connection; mobile type with wheels and brakes for flexible multi‑station ground operation.

Q6: What are its main benefits versus ordinary conveyors?
A6: Higher loading throughput, less labor intensity, reduced cargo damage, compact footprint after retraction, and avoids workers walking deep inside containers.

Q7: What basic troubleshooting can operators do?
A7: Cannot telescope: reset emergency stop, check limit switch and overload trip. Belt not running: verify power and inverter settings. Material jam: stop machine and clear obstructions, adjust belt tension.

Q8: Do you accept custom specifications?
A8: Yes. Customize telescopic stroke, belt width, load capacity, mobile/fixed structure. Optional extras: anti‑slip belt, safety guardrail, counter and remote control.

Q9: What about warranty & after‑sales for overseas clients?
A9: 5-years Steel structure while 1‑year core components warranty. We supply installation guidance, operation training, remote diagnosis and spare‑parts support.

Q10: What safety features are included?
A10: Standard safety kit: emergency stop, overload protection, travel limit anti‑collision, belt‑deviation protection and safety guardrails.
