ZFITA manufactures 20ft hydraulic container tilters designed for forklift, reach stacker and crane-assisted positioning. Available configurations include ZCT-ZM20, ZCT-ZM/CC20 and ZCT-AZM/CC20, supporting bulk container loading or combined loading and unloading applications. The ZCT-AZM/CC20 offers a rated capacity of 30,000 kg and a tilting range of 0–90°, with hydraulic container locking, remote control and optional weighing.
ZFITA manufactures hydraulic container tilters designed for bulk material loading and unloading using forklifts, reach stackers and compatible overhead lifting equipment.
Unlike truck-coordinated container tilters, these machines allow shipping containers to be placed onto the tilting platform using external container-handling equipment, reducing reliance on truck positioning at the operating station.
Our 20ft container tilter range includes ZCT-ZM20, ZCT-ZM/CC20 and ZCT-AZM/CC20, with configurations for bulk loading or combined loading and unloading.
The heavy-duty ZCT-AZM/CC20 supports a rated load capacity of 30,000 kg and a hydraulic tilting range of 0–90°.
The ZCT-ZM20 is designed for bulk loading operations using a reach stacker to position the container.
It provides a dedicated loading solution for industrial facilities with existing reach stacker equipment.
Key Features
The ZCT-ZM/CC20 supports container positioning with suitable forklifts or reach stackers.
It is intended for dry bulk loading operations where facilities need flexibility in selecting available container-handling equipment.
Key Features
The ZCT-AZM/CC20 is a heavy-duty hydraulic container tilter designed for both loading and unloading 20ft ISO shipping containers.
It supports external positioning by suitable forklifts, reach stackers or overhead lifting equipment and provides controlled hydraulic tilting from 0° to 90°.
The equipment features a rated load capacity of 30,000 kg, hydraulic container locking and multiple control options.
Key Features
| Specification | ZCT-ZM20 | ZCT-ZM/CC20 | ZCT-AZM/CC20 |
|---|---|---|---|
| Container Size | 20ft | 20ft | 20ft |
| Reach Stacker Positioning | Yes | Yes | Yes |
| Forklift Positioning | Not Listed | Yes | Yes |
| Crane Positioning | To Be Confirmed | To Be Confirmed | Available Subject to Handling Arrangement |
| Bulk Loading | Yes | Yes | Yes |
| Bulk Unloading | Not Specified | Not Specified | Yes |
| Hydraulic Door Operation | Yes | Yes | Yes |
| Hydraulic Locking | Yes | Yes | Yes |
| Remote Control | Optional | Optional | Included |
| Weighing | Optional | Optional | Optional |
Model-specific technical specifications and lifting arrangements should be confirmed before ordering.
| Parameter | Specification |
|---|---|
| Model | ZCT-AZM/CC20 |
| Applicable Container | ISO Standard 20ft |
| Rated Load Capacity (SWL) | 30,000 kg |
| Hydraulic Tilting Mode | Dual-Linkage Hydraulic Tilting |
| Tilting Angle | 0–90° |
| Tilting Speed | Approx. 1.0°/s |
| Main Hydraulic Cylinder | Ø140 mm bore / Ø80 mm piston rod |
| Hydraulic Pump | 25MCY14-1B Axial Piston Pump |
| Diesel Engine Power | 36 kW |
| Hydraulic Pressure | 20–26 MPa |
| Standard Power Configuration | Diesel Engine |
| Control | Remote / Local Control Cabinet |
| Container Locking | Hydraulic Linkage Locking |
| Door Operation | Manual Opening / Hydraulic Closing |
| Main Structural Material | Q355B Steel |
| Overall Dimensions | 8,260 × 4,695 × 2,560/7,175 mm |
| Equipment Weight | Approx. 9,800 kg |
| Optional Weighing | Available |
The above specifications refer to the published ZCT-AZM/CC20 configuration and should not be applied automatically to the ZCT-ZM20 or ZCT-ZM/CC20.
Containers can be delivered to the operating station using compatible lifting equipment instead of requiring a truck to remain positioned at the tilter.
This arrangement is suitable for industrial yards that already operate reach stackers, forklifts or cranes.

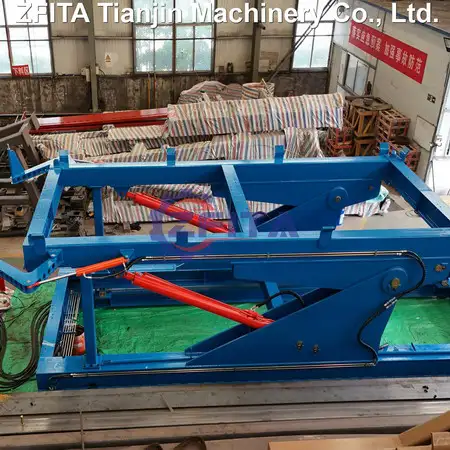

The hydraulic tilting system adjusts the secured container to a suitable operating angle.
The ZCT-AZM/CC20 supports 0–90° tilting and can be configured for both bulk loading and gravity-assisted unloading.

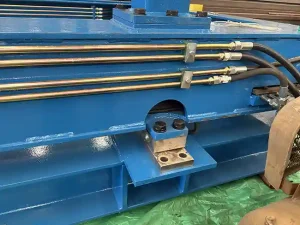

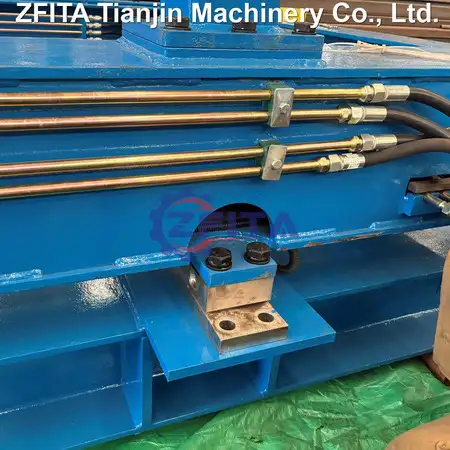

Hydraulic locking mechanisms secure the container during the tilting operation.
The equipment’s operating sequence must include locking verification and appropriate safety interlocks before the container is raised.
The ZCT-AZM/CC20 supports wireless remote control and local operation through the control cabinet.
Different control arrangements are available for the other models according to the selected configuration.
The ZCT-AZM/CC20 uses Q355B structural steel and a reinforced hydraulic lifting arrangement designed for industrial bulk handling.
Protective guards, access platforms and additional structural protection can be configured according to project requirements.
An integrated weighing system can be specified to monitor material weight during applicable handling operations.
The published ZCT-AZM/CC20 configuration lists a weighing range of 0–80 tonnes and a stated accuracy of 0.3%. This is an optional subsystem specification, not the tilter’s permissible lifting capacity.
CONTACT US
A reach stacker, forklift or suitable crane lifts the ISO container and places it onto the designated container tilter support.
The lifting equipment must have the appropriate rated capacity and compatible container-handling attachments.
The container is positioned correctly and secured using the hydraulic locking system.
The operator verifies the required locking and safety conditions.
The hydraulic system raises the secured container to the selected operating angle.
The angle is adjusted according to the model and material-handling process.
For loading, a suitable feeding system delivers bulk material into the container.
For unloading, compatible material discharges from the tilted container into a receiving hopper or downstream conveying equipment.
After loading or unloading, the container returns to the horizontal position.
Once the locking system is released according to the operating procedure, the external lifting equipment removes the container.
The ZCT-ZM20 and ZCT-ZM/CC20 provide dedicated container loading configurations for facilities using reach stackers or forklifts.
The ZCT-AZM/CC20 can also be used for bulk loading where a combined loading and unloading machine is preferred.
The ZCT-AZM/CC20 supports gravity-assisted unloading of compatible dry bulk materials.
The container is raised to a suitable discharge angle while material flows into the receiving equipment.
Unloading performance depends on cargo flowability, moisture content, discharge opening and the selected tilting angle.
| Industry | Typical Bulk Materials |
|---|---|
| Fertilizer | Potash, phosphate and granular fertilizers |
| Mining | Bauxite, alumina and compatible mineral products |
| Chemicals | Sulphur and suitable dry bulk chemical materials |
| Recycling | Selected scrap and recyclable bulk materials |
| Agriculture | Grain and other compatible dry agricultural commodities |
| Industrial Logistics | Containerized bulk solids handled with external lifting equipment |
Material compatibility must be evaluated according to bulk density, moisture, particle size, flow properties, abrasion and applicable safety requirements.
ZFITA manufactures hydraulic container handling equipment for industrial bulk loading and unloading operations.
Our manufacturing capabilities include steel structure fabrication, hydraulic system assembly, mechanical installation, electrical controls and equipment testing.
For forklift and reach stacker container tilter projects, ZFITA can review container compatibility, external lifting equipment, operating layout, hydraulic control, locking systems and material-handling requirements.
Custom equipment configurations can be developed according to the customer’s project specifications.
A forklift container tilter is a machine that allows a suitably rated forklift or other external lifting device to position a container onto a hydraulic tilting platform for bulk material handling.
A reach stacker container tilter uses external lifting equipment to position the container. A truck-coordinated tilter uses a truck-based positioning procedure at the operating station.
The ZCT-ZM20 and ZCT-ZM/CC20 are listed as loading configurations. The ZCT-AZM/CC20 supports both loading and unloading.
The listed standard configurations are designed for 20ft ISO containers. Larger sizes require separate engineering confirmation.
The published equipment specification lists a rated load capacity of 30,000 kg.
The ZCT-AZM/CC20 supports hydraulic tilting from 0° to 90°.
No truck needs to remain at the tilting station when the container is positioned and removed using compatible external lifting equipment.
An overhead crane may be used where the container lifting attachment, machine support structure and operating procedure are suitable. The final configuration must be confirmed before purchase.
Yes. An integrated weighing system is available as an optional configuration.
Yes. Hydraulic locking arrangements, remote control and additional safety configurations can be reviewed according to the project.
ZFITA offers hydraulic container tilters for 20ft ISO container loading and unloading using forklifts, reach stackers or suitable cranes.
Please provide your container size, maximum gross weight, available lifting equipment, material type, loading or unloading requirements, site layout and preferred power supply.
Our team can recommend an appropriate equipment configuration based on your project requirements.
| Model | Reference photo | Working with | |

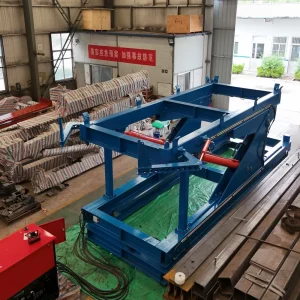

| 1 | ZCT-ZM20 | ![]() | Reach stacker only. Loading only Standard function: Hydraulic door opening/closing, Hydraulic container locking Optional function: Weighing, Remote control, Side wall or bottom protection |
| https://youtube.com/shorts/uLeLHVDNqPo?feature=share | |||
| 2 | ZCT-ZM/CC20

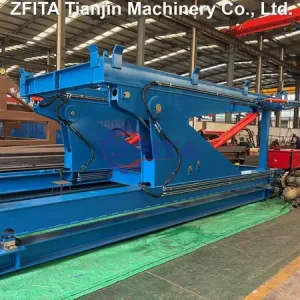

| ![]() | Reach stacker or forklift. Loading only Standard function: Hydraulic door opening/closing, hydraulic container locking Optional function: Weighing, remote control, Container bottom protection |
| https://youtube.com/shorts/-aRXykz8W60?si=49VL50QQ4rGbDFZS | |||

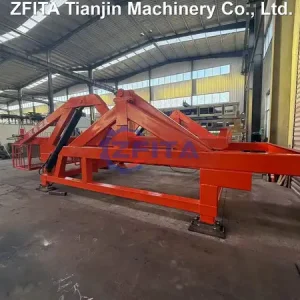

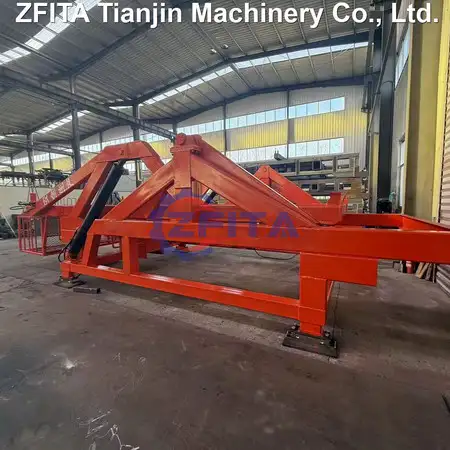

| 3 | ZCT-AZM/CC20 | ![]()
| Reach stacker or forklift. Loading or unloading Standard function: Hydraulic door opening/closing, hydraulic container locking, Remote control Optional function: Weighing, Container side wall and bottom protection Four oil cylinders for heavy duty. |
| https://youtube.com/shorts/Lw233Vd30xE?si=iOQctBlvXrC5GhBj | |||
