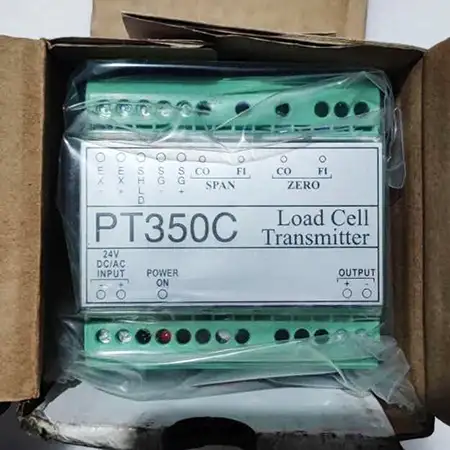

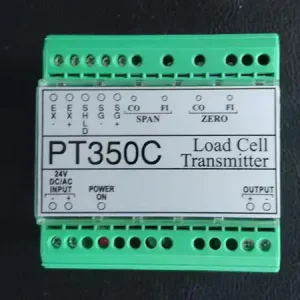

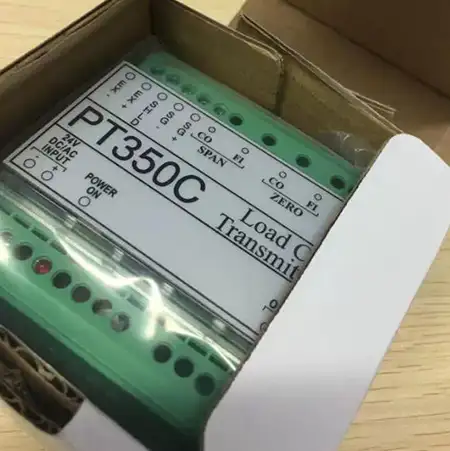

The PT350C weight transmitter supports multiple output signal options, featuring analog outputs, digital outputs and network communication interfaces for easy connection and communication with various control systems. Its highly programmable design allows users to custom configure measuring ranges, alarm setpoints and output signals according to practical requirements, enabling greater flexibility in application and control.
The PT350C weight transmitter supports multiple output signal options, featuring analog outputs, digital outputs and network communication interfaces for easy connection and communication with various control systems. Its highly programmable design allows users to custom configure measuring ranges, alarm setpoints and output signals according to practical requirements, enabling greater flexibility in application and control.
Built with industrial grade protection, this weight transmitter delivers excellent durability and anti interference performance, suited for weight measurement and control in diverse harsh environment applications. Meanwhile, its intuitive operator interface and user friendly mounting design enable fast commissioning for deployment across a wide range of industrial scenarios.
In summary, the PT350C weight transmitter is a high performance, flexible and reliable weight sensing device. Designed for weight measurement and control within assorted industrial control systems, it meets user requirements for high precision, stability and dependability.
| Item | Specification |
|---|---|
| Power Input | 24 V DC or AC ±10% |
| Power Consumption | 5.3 W |
| Operating Temperature | -5°C to 60°C |
| Relative Humidity | 90% RH (non-condensing) |
| Sensor Type | All resistive strain-gauge force sensors |
| Sensor Excitation | DC 10 V, 120 mA |
| Input Sensitivity | 1.5 mV/V OR 3.5 mV/V |
| Output | |
| Format: 0-5 V / 1-5 V | Impedance: > 2 kΩ |
| Format: 0-10 V | Impedance: > 4 kΩ |
| Format: 0-20 mA / 4-20 mA | Impedance: < 550 Ω |
| Non linearity Error | ≤ 0.05% of full scale |
| Overall Dimensions | 75 mm(L) × 75 mm(W) × 55 mm(H) |
| Net Weight | 150 g |
