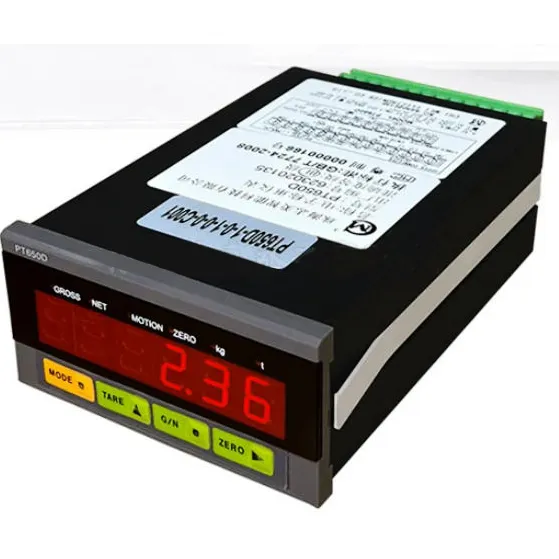

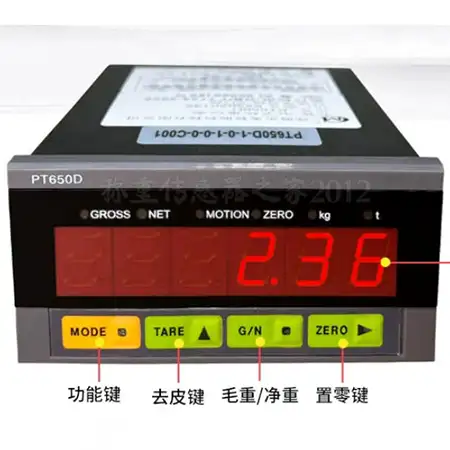

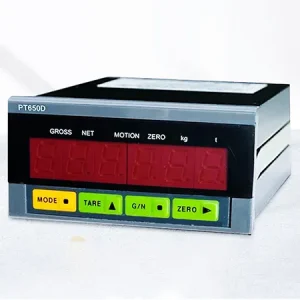

The PT650D weighing indicator is a multi‑purpose weighing instrument. It delivers many special features that were previously only available on high‑cost instruments. The PT650D is suitable for industrial and commercial applications including platform scales, floor scales, vessel scales, truck scales and crane scales.
The PT650D weighing indicator is a multi‑purpose weighing instrument. It delivers many special features that were previously only available on high‑cost instruments. The PT650D is suitable for industrial and commercial applications including platform scales, floor scales, vessel scales, truck scales and crane scales.
| Parameter | Specification |
|---|---|
| Name | Zhimei Weighing Control Indicator |
| Model | PT650D |
| Power Supply | AC 110V/220V / DC 24V |
| Power Consumption | 18 W |
| Operating Temperature | -5°C to 50°C |
| Relative Humidity | 90% (non‑condensing) |
| Sensor Type | All strain‑gauge type |
| Sensor Excitation | DC 10V, 280 mA |
| Input Sensitivity | 0.05 µV/div to 200 µV/div |
| Temperature Coefficient | 8 ppm/°C of full scale |
| Non‑linearity | 0.005% of full scale |
| Display Range | 500 to 100,000 |
