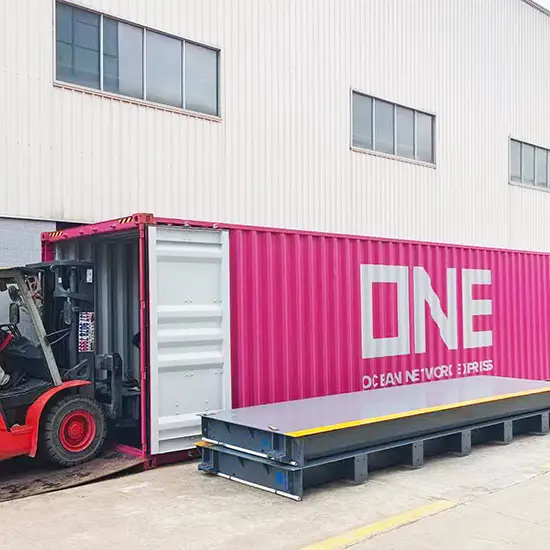

Steel Deck Truck Scales，Portable Weighing for Moving Job Sites，ZFITA Portable Truck Scales with Digital Smart Cells.
SCS Series Digital Electronic Truck Scale
Main Features
The digital electronic truck scale consists of digital weighing sensors, digital weighing display controllers, modular load-bearing platforms and other equipment. Digital technology has improved the quality of the truck scale, making it easy to debug, safe to use, simple to maintain, convenient for communication, high degree of intelligence, stronger anti-interference ability, and longer transmission distance.
■ Digital Communication Technology
① Adopts RS485 bus technology to realize long-distance signal transmission with a transmission distance of no less than 1000 meters;
② The output digital signal reaches 3-4V, which has strong anti-interference ability and improves the lightning protection capability of the system;
③ The bus structure is convenient for the application of multiple weighing sensors, and up to 32 weighing sensors can be connected in the same system.
■ Intelligent Technology
① Prevents tampering with weighing signal values using simple circuits;
② Sensor characteristic parameters can be changed according to software instructions;
③ Fault automatic diagnosis function with error code prompts.
■ Digital Calibration Technology
① Automatically completes the scale’s eccentricity (four-corner) calibration in one operation;
② Can modify the range coefficient and zero value of the scale as needed, ensuring consistent coefficient and zero parameters for each sensor.
SCS Series Analog Electronic Truck Scale
Applications & Features
Applications: Suitable for full-vehicle weighing of conventional vehicles, widely used in material trade, stations, docks, industrial and mining enterprises, transportation and other industries.
Features:
1. No-pit or shallow pit installation, low infrastructure construction cost.
2. The weighing part works at -40℃~+65℃, resistant to sun exposure and rain.
3. The weighing instrument can store weighing data of 1000 vehicles.
4. Can print measurement reports and statements, queryable, connectable to computers, equipped with large screens and dynamic weighing instruments to realize dynamic weighing.
Note: Custom specifications of electronic truck scales are available, with customizable length × width combinations.
Main Technical Parameters
| Parameter | Specification |
| Max Capacity (t) | 10, 20, 30, 50, 60, 80, 100, 120, 150, 200 |
| Division Value (kg) | 5, 10, 20, 50 |
| Sensor Capacity (t) / Qty (pcs) | 10/4, 20/4, 20/6, 30/6, 30/8, 40/8 |
| Length Series (m) | 16, 18, 20, 24 |
| Width Series (m) | 3, 3.2, 3.4, 3.5 |
| Approach Ramp Length | 4m ~ 6m |
| Accuracy Class | 0.1L, Ⅲ |
| Working Temperature | -40℃ ~ +60℃ |
| Relative Humidity | <95% |
| Power Supply | AC220V ±10%, 50Hz |
| Safe Overload | 125% |

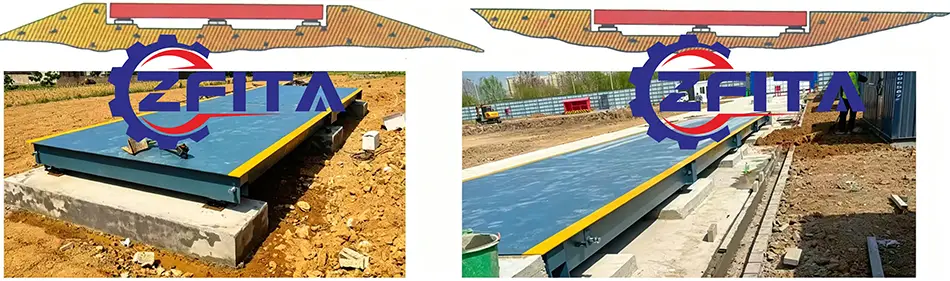

Pit Installation Forms
Due to its unique flat-plate modular weighbridge structure, users can conveniently choose no-pit or shallow pit installation forms.
| Item | Description | Remarks |
| 1 | Truck scale | Digital truck scale |
| 1.1 | Model | SCS-100T |
| 1.2 | Platform dimensions | 3x18m |
| 1.3 | Platform divided into sections | 4 sections |
| 1.4 | Platform structure type | U-beam structure |
| 1.5 | Ground foundation type of weighbridge | Shallow pt/ no pit |
| 1.6 | Maximum safe overload | 150%F.S |
| 1.7 | Maximum weighing capacity | 100 t |
| 1.8 | Verification division value | 50kg |
| 1.9 | Operating current | 0.2A |
| 2 | Sensor type | Bridge type |
| 2.1 | Single sensor range | 30t |
| 2.2 | Quantity of sensors | 10 |
| 2.3 | Sensor operating temperature | -30℃ to +65°C |
| 2.4 | Sensor protection grade | IP65 |
| 3 | The truck weighing working temperature | -20 to 65 ℃ |
| 3.1 | Relative Humidity | ≤90% |
| 3.2 | Working power | 220V AC, 50HZ |
Performance Guarantee
| Performance Parameter | Unit | Specification |
| Accuracy Class | Class | OIML III |
| Safe Overload | % | 150% |
| Ultimate Overload | % | 300% |
| Maximum Signal Transmission Distance | m | 1200m |
Key Component Service Life & Accuracy Guarantee
| Component Name | Accuracy | Guaranteed Service Life |
| Weighbridge Deck | 1/10000 | ≥ 1,500,000 cycles |
| Load Cell | 1/10000 | ≥ 1,500,000 cycles |
Technical documents to be supplied
| Item | Description |
| 1 | Technical Operation Manual for SCS-100 Ton Truck Scale |
| 2 | Printer User Manual |
| 3 | Operation Manual for Weighing Display Indicator |
| 4 | Product Qualification Certificate & Warranty Card |
| 5 | Truck Scale Maintenance Instructions |
Main Technical Description of Truck Scale Equipment
1. The load-bearing weighbridge deck adopts a U-beam large girder structural design with a bridge-type steel structure. It is durable, with strong bending and impact resistance. The steel plate is made of Shaogang medium plate, with the following thickness specifications:
Deck plate: 10mm / 12 ± 0.5mm
End beam plate: 10/14mm ± 0.5mm
Load cell bearing plate: 40mm ± 0.5mm
2. The load cells meet National C3 comprehensive accuracy grade, with excellent sealing, waterproof and anti-corrosion performance. They are the most stable products in the weighing instrument industry.
3. The weighing indicator features fast response, high stability, and strong anti-interference capability. It also supports customizable print formats, daily reports, and various user-defined reports.

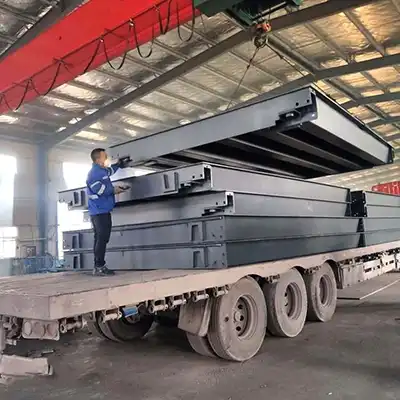

4. The weighbridge deck is designed with modular, standardized, and serialized construction, supporting multi-unit combination and equipped with an automatic reset force transmission mechanism.
5. Built-in protection against secondary lightning strikes and surge voltage.
6. Strong environmental adaptability: moisture-proof, anti-corrosion, and anti-RF interference.
7. Features include self-diagnosis, weighing data memory, man-machine dialogue, and keyboard-based setting/calibration.
8. Multiple data storage functions: vehicle number and tare weight storage, as well as itemized and total cumulative weight storage.
